Details:

LOA                              36’10”             11.25M

LWL                             27’6”               8.38M

BEAM                          11’11”             3.62M

DRAFT (Keel Up)          2’3”                 0.69M

DRAFT (Keel Down)     8’1”                 2.46M

DISPLACEMENT           15,215lbs         6,900Kg

BALLAST WEIGHT        4,962lbs           2,250Kg

KEEL WEIGHT              2,635lbs           1,195Kg

FUEL TANK                   40 Gallon         180 Litre

WATER TANK               50 Gallon         227 Litre

Owners comments:
During our ownership we have spent five to 10 years happily cruising the East Coast of the UK and the Netherlands. We then took the boat to the Baltic, and based the yacht in Denmark for 15 years, cruising around Denmark and the West Coast of Sweden. During the winters the mast was unstopped and stored indoors along with the yacht.

Construction:

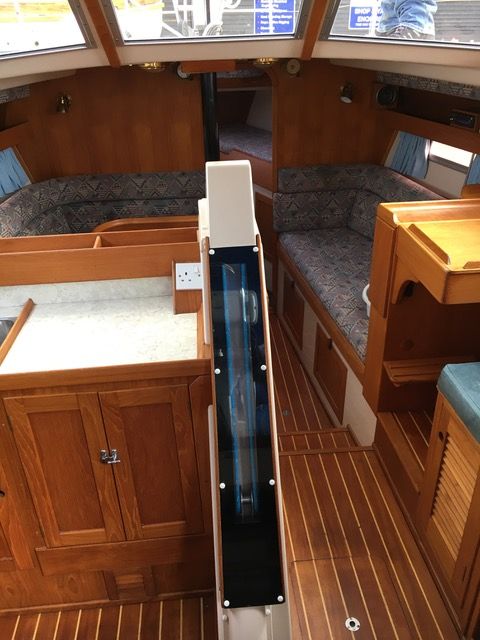

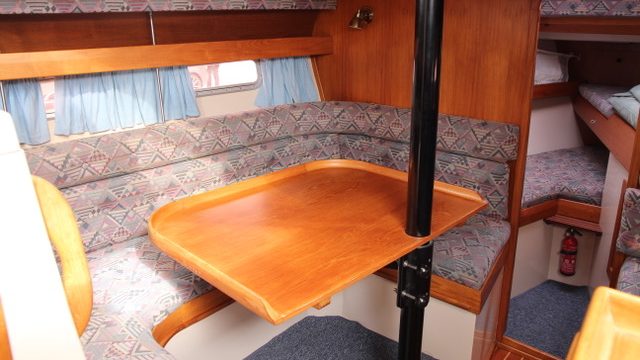

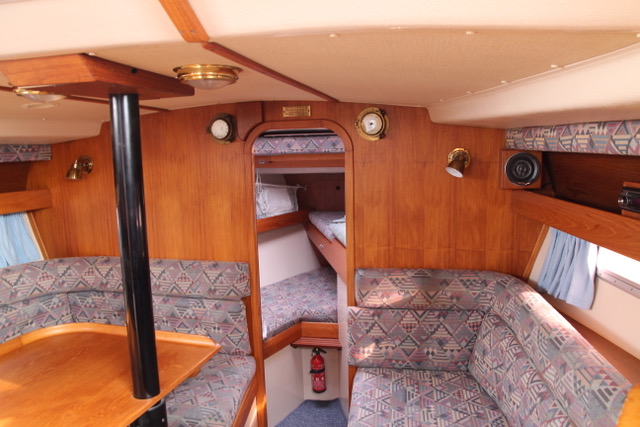

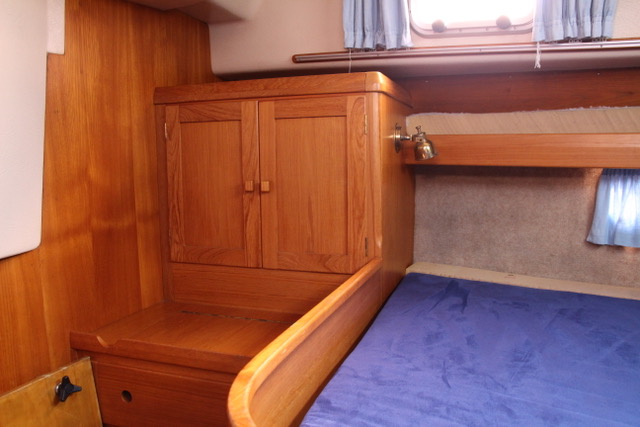

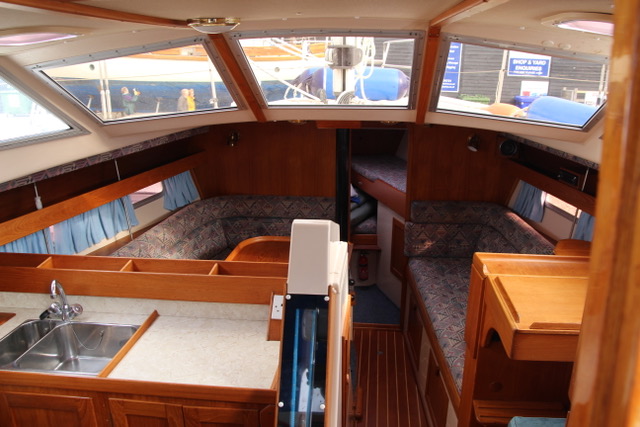

Hull and superstructure are heavy duty hand lay-up GRP mouldings. In the hull, woven rovings and chopped strand mats are used in combination, with thickness increasing progressively towards the keel area. There is a balsa core in the topsides that stops just above the waterline. The deck is of sandwich type construction using balsa core stiffening, with plywood in high stress areas where fittings are positioned. Bulkheads are glassed in, and the entire deck is bonded to the hull, resulting in a strong and integrated unit. A teak rubbing strake is fitted externally. The interior joinery is of teak faced plywood, with solid teak trims built onto GRP base modules which are also “glassed” into the hull.

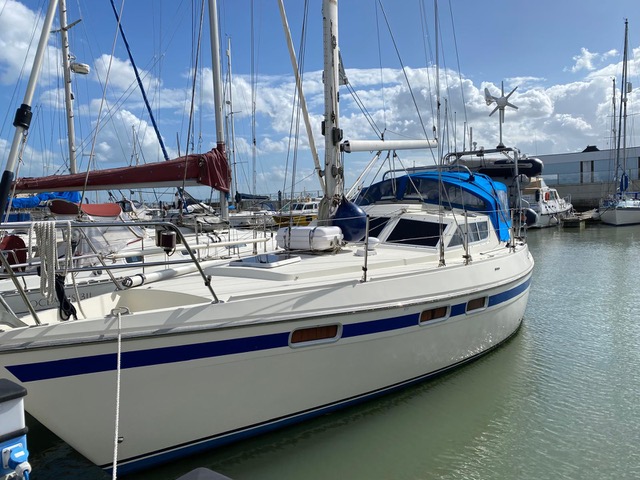

Hull colour:  Off White
Deck colour: Off White
Boot-top and style lines: Blue

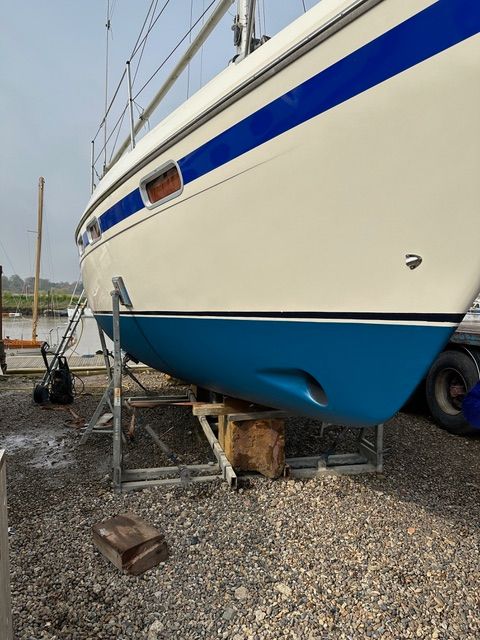

Underwater hull sandblasted in 2022, keel and ballast plate epoxied and all re-antifouled

Swing keel:
The cast iron grounding plate is bolted into a recess in the hull using stainless steel bolts. It acts as transverse stiffening in way of the keel slot and protects the hull when taking the ground. The aerofoil swing keel, a Rob Humpreys design, is cast iron with a stainless-steel pivot fitting into a substantial boss at the forward end of the grounding plate. The swing keel is raised by an electrically operated hydraulic ram with manual backup, which is attached to the swing keel by a pulley system. I can be operated from either the cockpit or from the chart area. A keel lock down and lock up pin is provided. The keel was dropped and serviced in 2015 with new keel pennants fitted.

Engine:

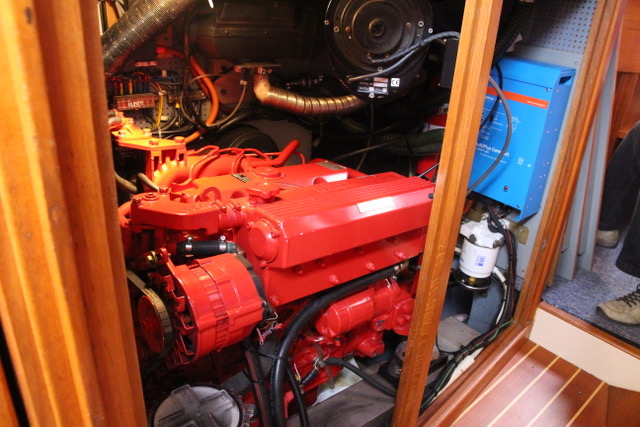

Beta Marine Beta 50 4-cylinder 4 stroke marine fresh water-cooled diesel fitted (new in 2015) with reduction/reverse gearbox is fitted. A marine electrical system with a 55amp alternator is fitted with the instrument panel fitted on the pedestal Hot water is heated from the engine via a calorifier tank. Other fittings include bronze stern tube with water lubricated stern gland and a Brunton Autoprop three bladed feathering propellor. Tek Tanks polyethylene plastic fuel tank with a capacity of approx. 40 gallons, contents gauge and fuel line filter. Bronze water inlet with strainer. Sound insulation in engine compartment. Single lever engine control mounted on steering pedestal. Extractor fan in engine compartment.

Bow thruster:
Lewmar 185TT bow thruster fitted, with control at steering pedestal.

Steering Gear:
The cockpit wheel is pedestal mounted; a Whitlock torque tube system connects the wheel to the steering arm. The rudder is a GRP moulding protected by a shoe to  facilitate beaching or sailing in shallow water. The rudder is fitted with an end plate. An emergency tiller is supplied.

Spars and Rigging:
The mast and boom by Kemp are in anodised aluminium alloy with stainless steel and alloy fittings, and a rod vang. Standard rigging is of 1 x 19 stainless steel wire with swaged end fittings and stainless-steel rigging screws. Harken genoa furler reefing is fitted with Kemp Furlin’ in mast mainsail reefing. Running rigging is in polyester rope.  Cruising chute and gennaker boom: spinnaker pole. The main and genoa halyards are controlled from the mast with 2 Lewmar 8 halyard winches. The mainsail inhaul and outhaul lead aft to the cockpit with the mainsheet on the starboard side and the kicking strap and topping lift on the port side, Appropriate rope clutches and winches are fitted.

Sails:
A furling mainsail and furling genoa,(new in 2015) both with UV protection strips are provided. (Original sails are available, but worn)

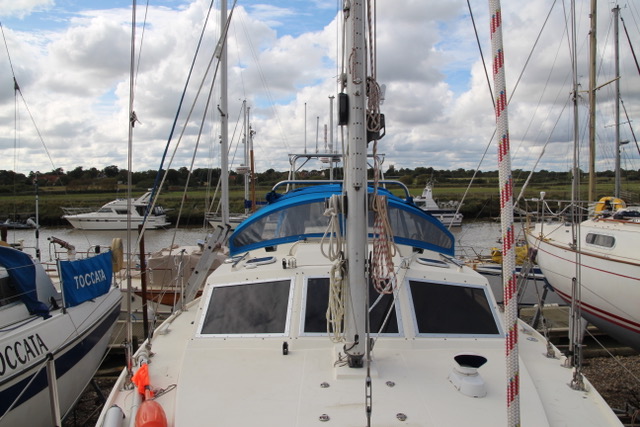

Windows and Hatches:
Lewmar hinged acrylic opening deck hatch forward. Main companionway hatch in acrylic on slides with garage. Lewmar hinged acrylic opening hatch in aft cabin on stern deck. Opening windows in aft cabin and aft toilet. Dorade vent over saloon. Ventilators in toilet and galley. Two small Lewmar opening hatches over galley and chart table. All other windows are fixed tinted polycarbonate and acrylic panels, except for the forward-facing wheelhouse windows which are toughened glass. The hull and wheelhouse windows are recessed into the GRP and have bezels on the inside to help prevent condensation. Saloon windows were replaced circa 2015.

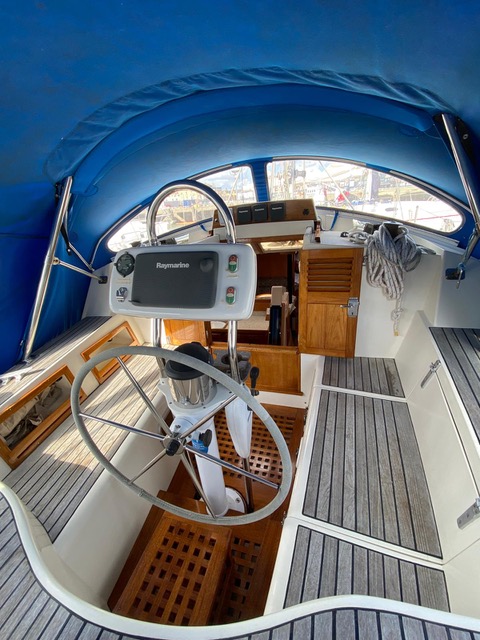

Cockpit:

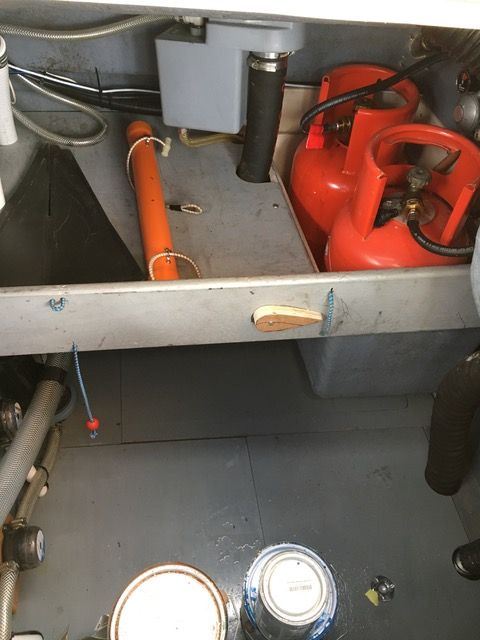

Cave lockers in coamings. Large cockpit locker with access to drained gas bottle stowage, containing  2 x 6kg propane cylinders. 30” stainless steel destroyer wheel on pedestal with binnacle compass. Single lever engine control. Teak Laid cockpit seats, coamings  and aft deck. Teak grating on cockpit sole. 2 cockpit drains with 2” bore pipes. Full cockpit canopy, extending to aft cabin top.

Freshwater:
A stainless-steel tank with deck filler of 50 gallons approx. is situated under the port settee. An electric pressure system pumps hot and cold water to galley and  washbasins.

Bilge Pump:
A manual bilge pump is fitted in the cockpit, piped from the bilge sump to hull discharge.

Electrics:

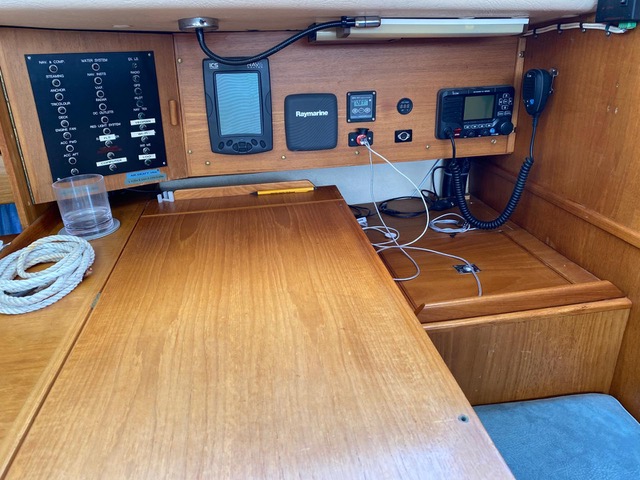

Five heavy duty 12-volt batteries fitted with independent isolating switches, 4 for domestic services, 1 for engine starting. The batteries are stowed in a purpose made vented box under the cabin sole. Charging is via the engine alternator. Victron inverter/battery charger fitted. Full accommodation and navigation lights. Combined flood light and steaming light on mast and combined tricolour all round white light at masthead. Battery state meter. Switch panel at chart table with switch circuit breakers to protect systems.  A sacrificial anode on hull is connected to engine and stern tube. Galvanic isolator. Rutland 913 wind generator/charger.

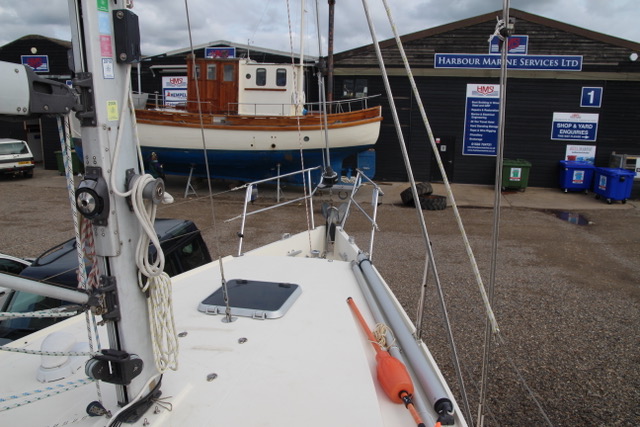

Deck Fittings:

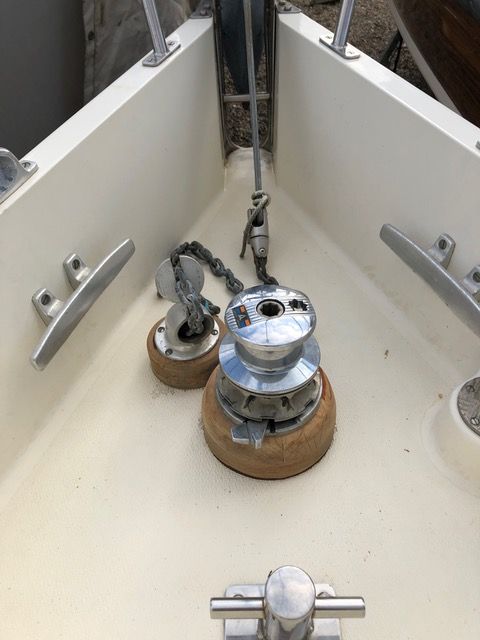

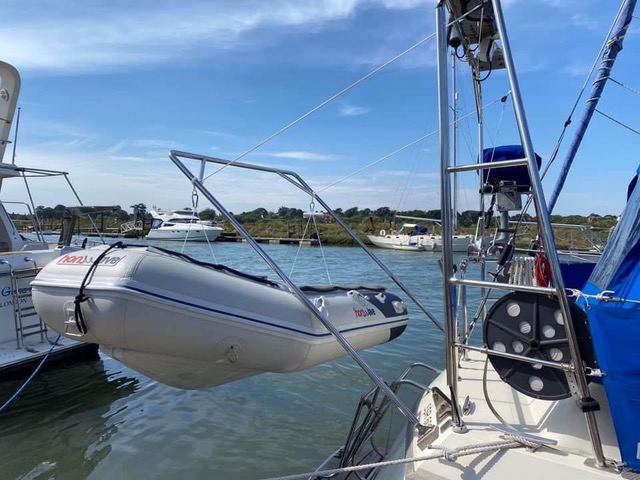

Genoa sheet tracks with roller fairleads. 2 speed Lewmar 44 sheet winches and cleats on cockpit coaming. Lewmar 8 winches on coach roof with stoppers. Adjustable mainsheet traveller and mainsheet rope clutch on coach roof. SL Anchorman windlass. Delta Anchor. Fairleads. Fore, aft, and mid-ship mooring cleats. Stanchions and double lifelines.  Gates in lifelines port and starboard. Stainless steel pulpit and split pushpit with large instrument arch above. Bow roller incorporating stowage for anchor. Harken furling headsail gear. Teak bathing platform with stainless steel transom boarding ladder. Stainless steel folding davit system for dinghy storage mounted on transom. Canvas dodgers, canvas covers for windscreen and side windows. ¾ overall winter cover.

Electronics & Navigation:
Steering compass mounted on pedestal. Raymarine instruments (fitted 2014)

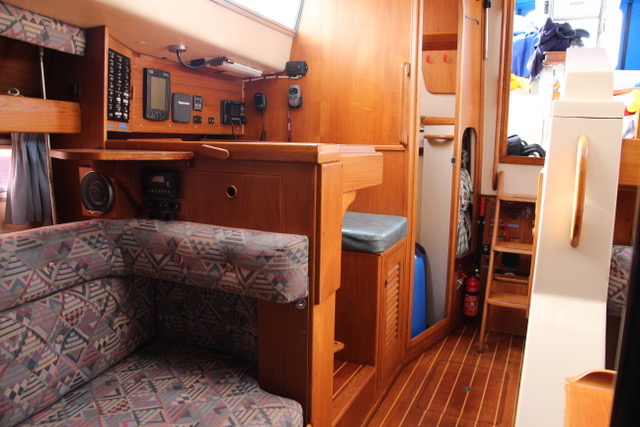

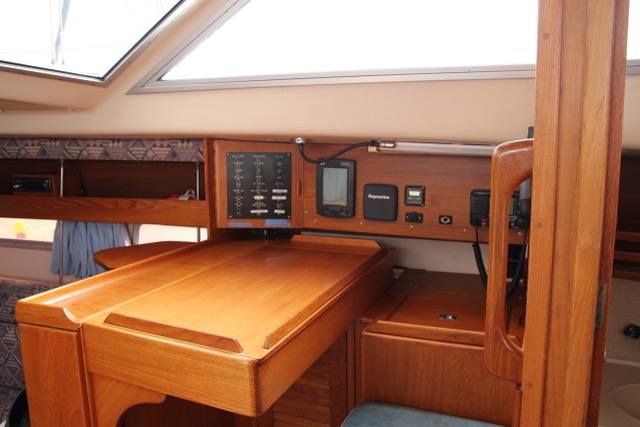

C95 Plotter, Raydome mounted on mast, Autopilot, wind, speed and depth instruments mounted in pod above companionway hatch. Raymarine Class B AIS transponder and VHF splitter. Raymarine i70 multi display and VHF by chart table, with VHF Command mike in cockpit. GRP pod in cockpit, mounted on steering pedestal, with plotter, keel and bow thruster controls. Cylindrical radar reflector mounted on mast. Seame radar reflector mounted at stern goalpost. Echopilot FLS forward looking sonar sounder. Stereo radio/CD and speakers.

Engineering:
Webasto diesel powered hot air heating system

Inventory:
15Kg Delta anchor with chain and warp. 2 mooring warps. 3 fenders, Fire extinguisher. Ensign staff and ensign. Boathook. Sprayhood.
